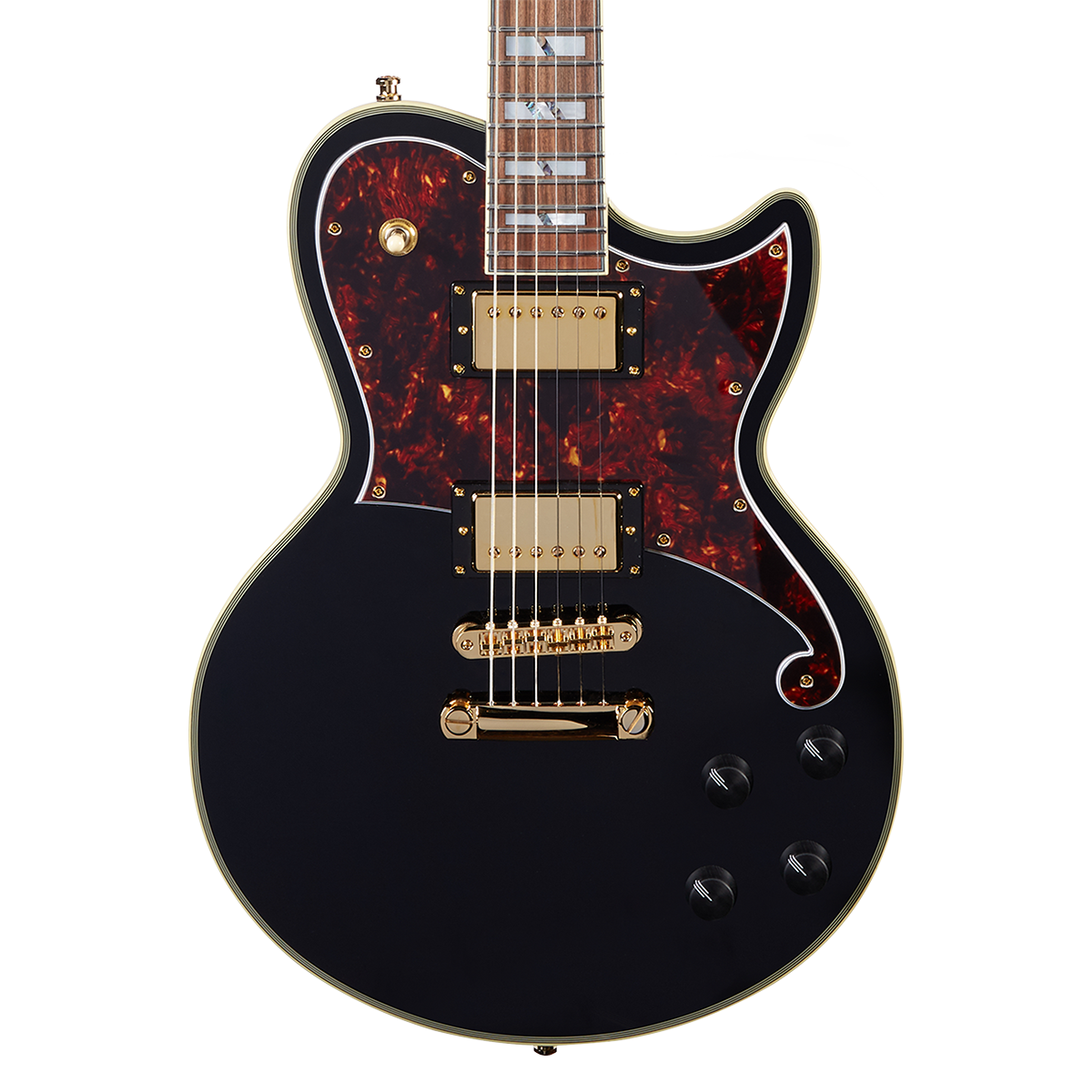

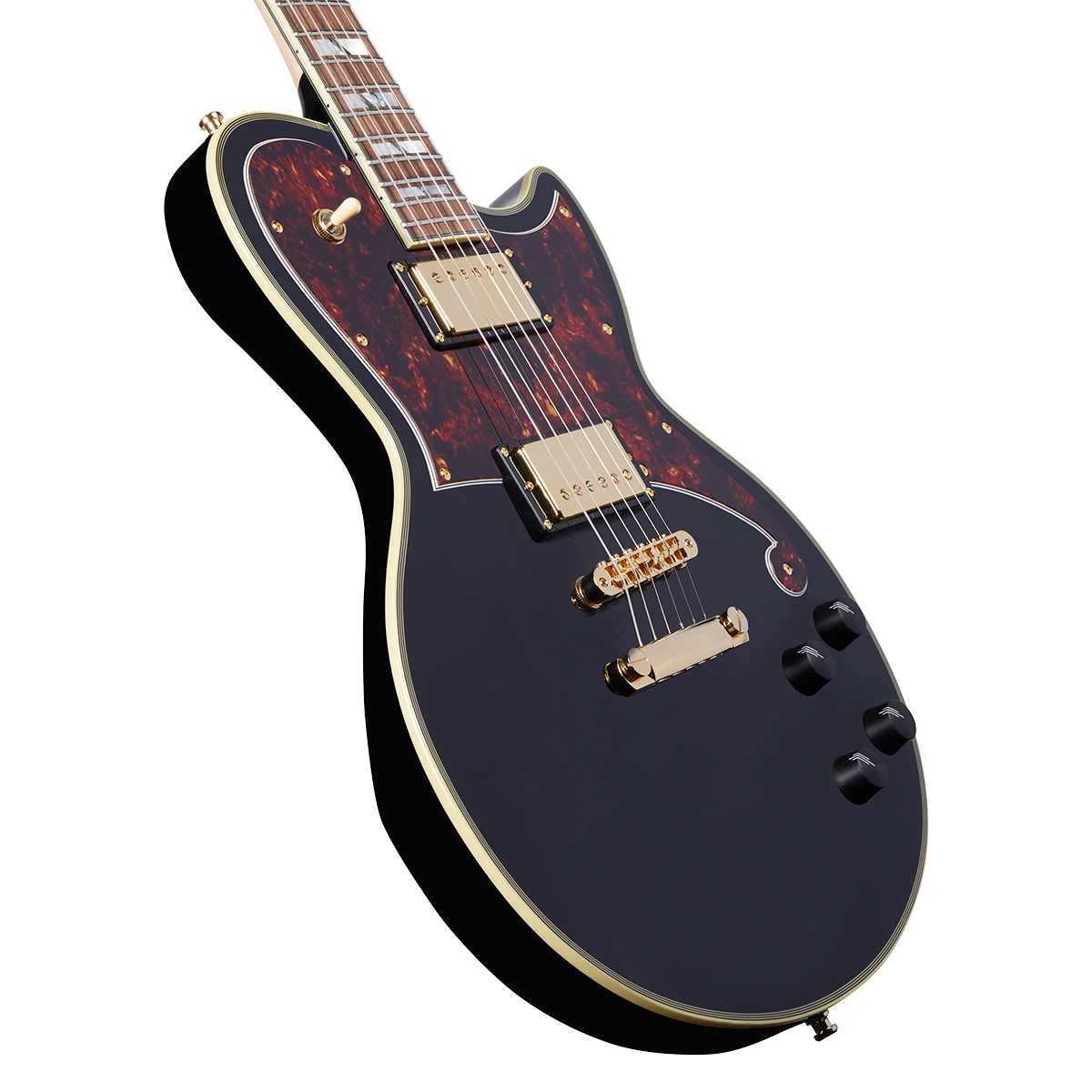

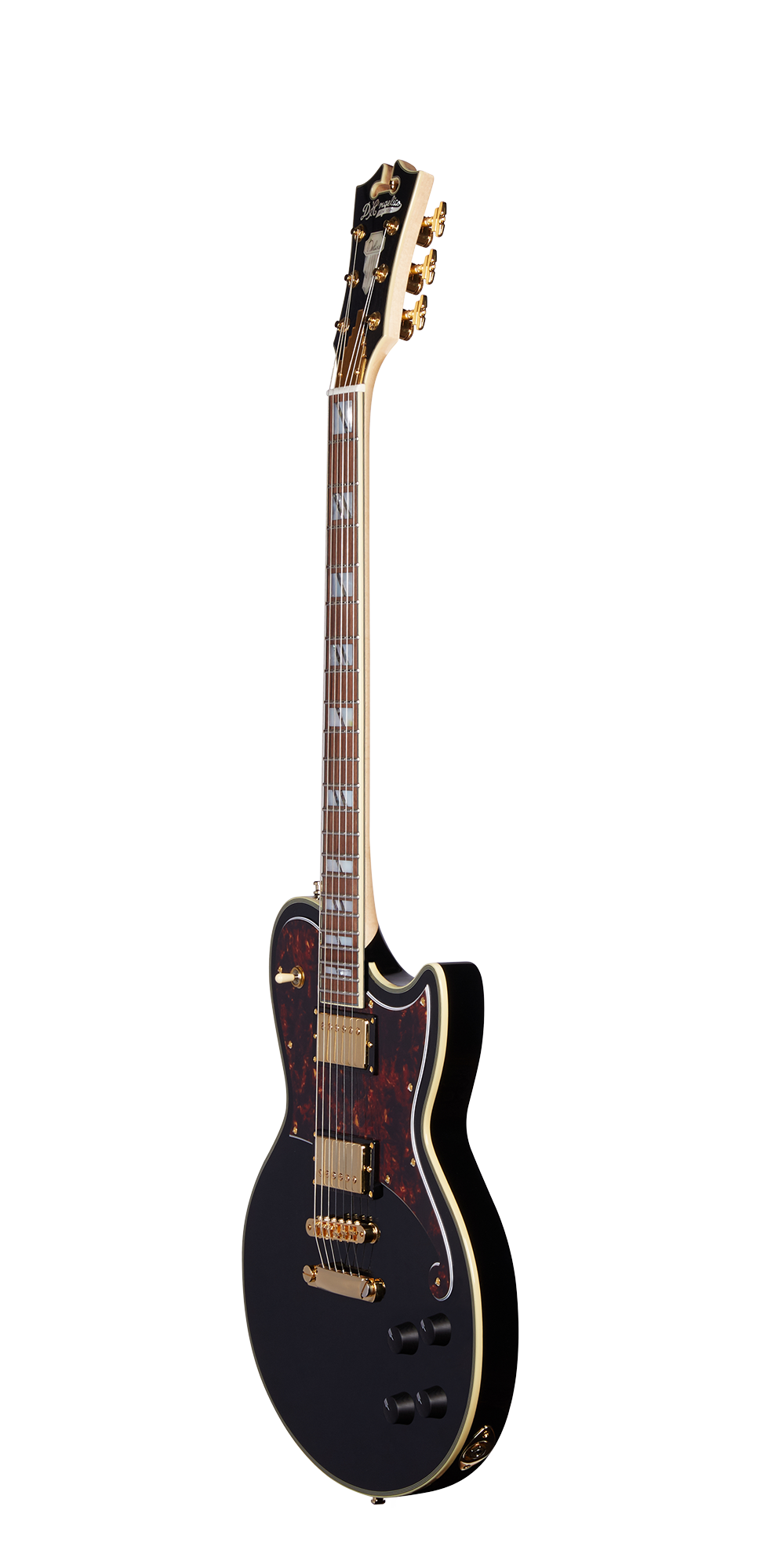

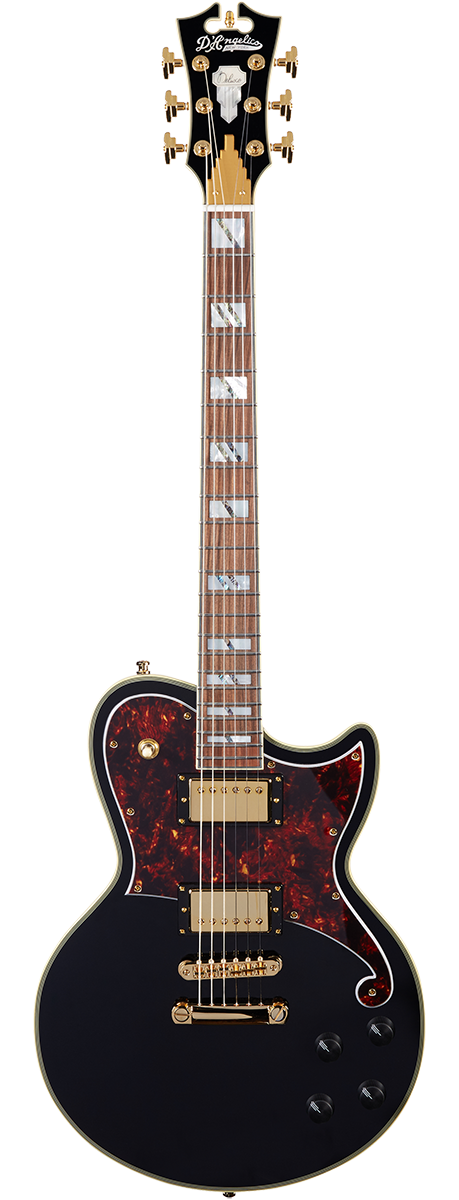

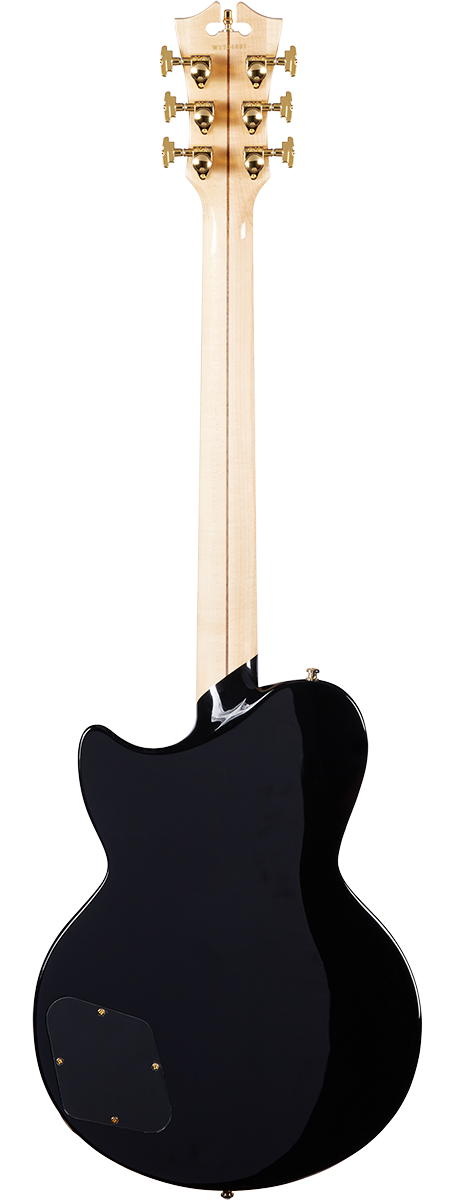

Deluxe Atlantic Black |
Compare another model
|
|
|---|---|---|
MODEL | ||
Specific Model | Deluxe Atlantic Black | |
HARDWARE | ||
Hardware Color | Gold | |
HEAD | ||
Logo (Front) | Mother of Pearl Deluxe Shield Logo | |
Logo (Back) | W180001-Gold Screen | |
Machine Head | Grover Super Rotomatic Locking | |
String | D'Angelico Electrozinc 10's (10-46) | |
Truss Rod Cover | Aluminum Skyscraper Gold | |
Nut Width | 1 11/16" | |
Nut Material | Tusq | |
FINGERBOARD | ||
Material | Pau Ferro | |
Binding | 4 Ply | |
Fretwire | Medium | |
Scale | 24.75" | |
Radius | 14" | |
Position Inlay Top | Mother of Pearl/Abalone Split Block | |
—Side Marker | Yes | |
Fret Number | 22 | |
Frets Clear | 20 | |
NECK | ||
Material | Maple/Walnut/Maple, Natural Satin Finish | |
Shape of Back | C-Shape | |
Joint Type | Set-Thru | |
Thickness 1F | 20mm | |
—12F | 22mm | |
Trussrod | Dual Action | |
BODY | ||
Body Style | Solid-body | |
Body Depth | 1.625" | |
Body Width | 13.25" | |
Color | Black | |
Shape | Single cutaway | |
Top Material | Basswood | |
Back Material | Basswood | |
Side Material | Basswood | |
Binding Top | 7 Ply | |
Bridge | Gold Tune-O-Matic | |
Tail & Tailpiece | Stopbar | |
Pickguard | F-Hole Style (5 Ply) | |
Strap Button | 2 Gold | |
ELECTRONICS (Electric) | ||
Electronics Overview | 2 Humbuckers / 2 Volume / 2 tone / 3-way toggle switch | |
Pickup (Neck) | USA Seymour Duncan DA-59 Humbucker | |
Pickup (Bridge) | USA Seymour Duncan DA-59 Humbucker | |
—Knob (V&T) | 4 Ebony (push/pull) | |
—Knob (V&T) | Cream | |
Jack | EG2P mono | |
Pots | 500k | |
CASE | ||
Case | Deluxe Hardshell Case | |
